Casa » Bussmann Fusetron™ BP/FRN-R-30 Time Delay Fuse, 30 A, 250 VAC/125 VDC, 200 kA Interrupt, Class: RK5, Cartridge Body
Bussmann

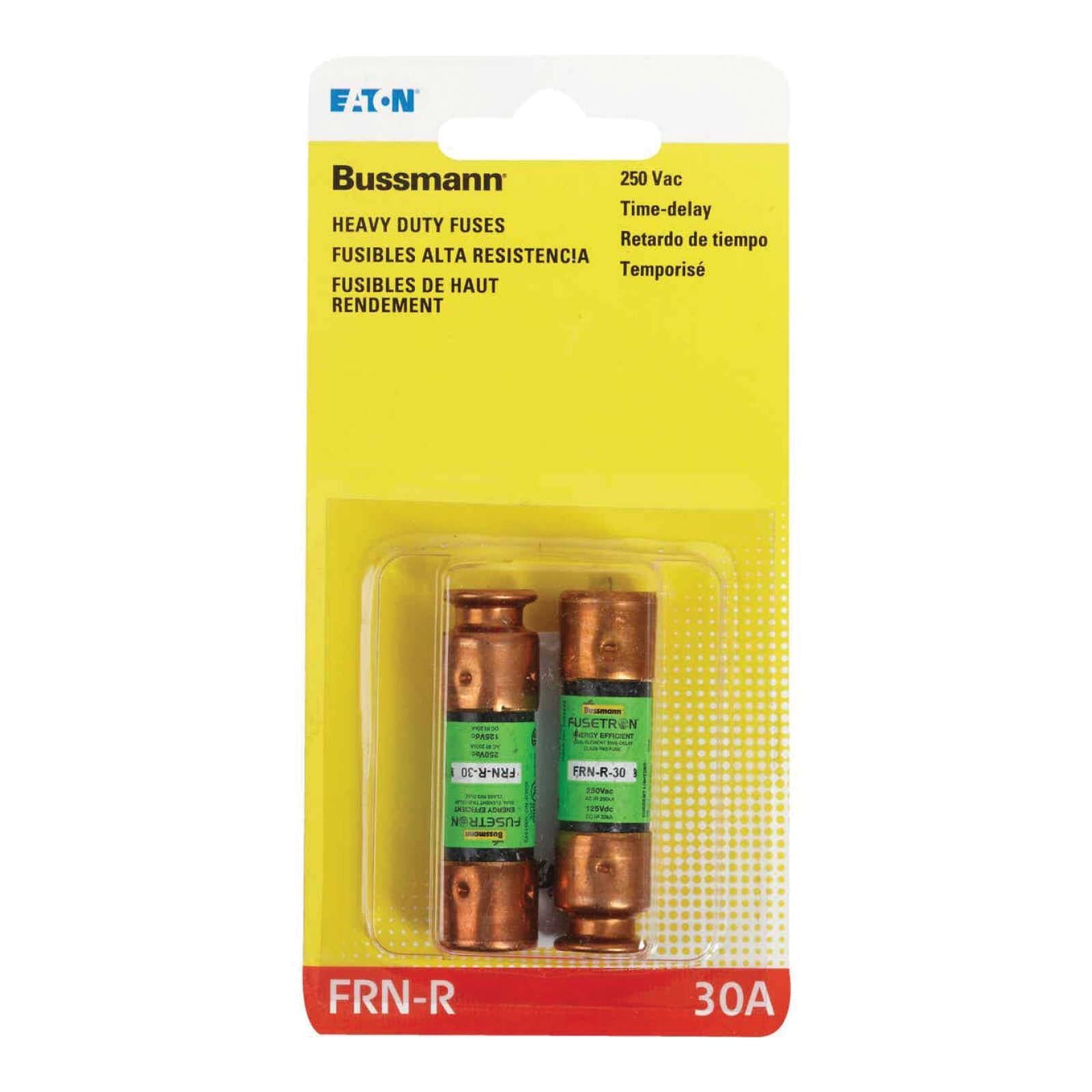

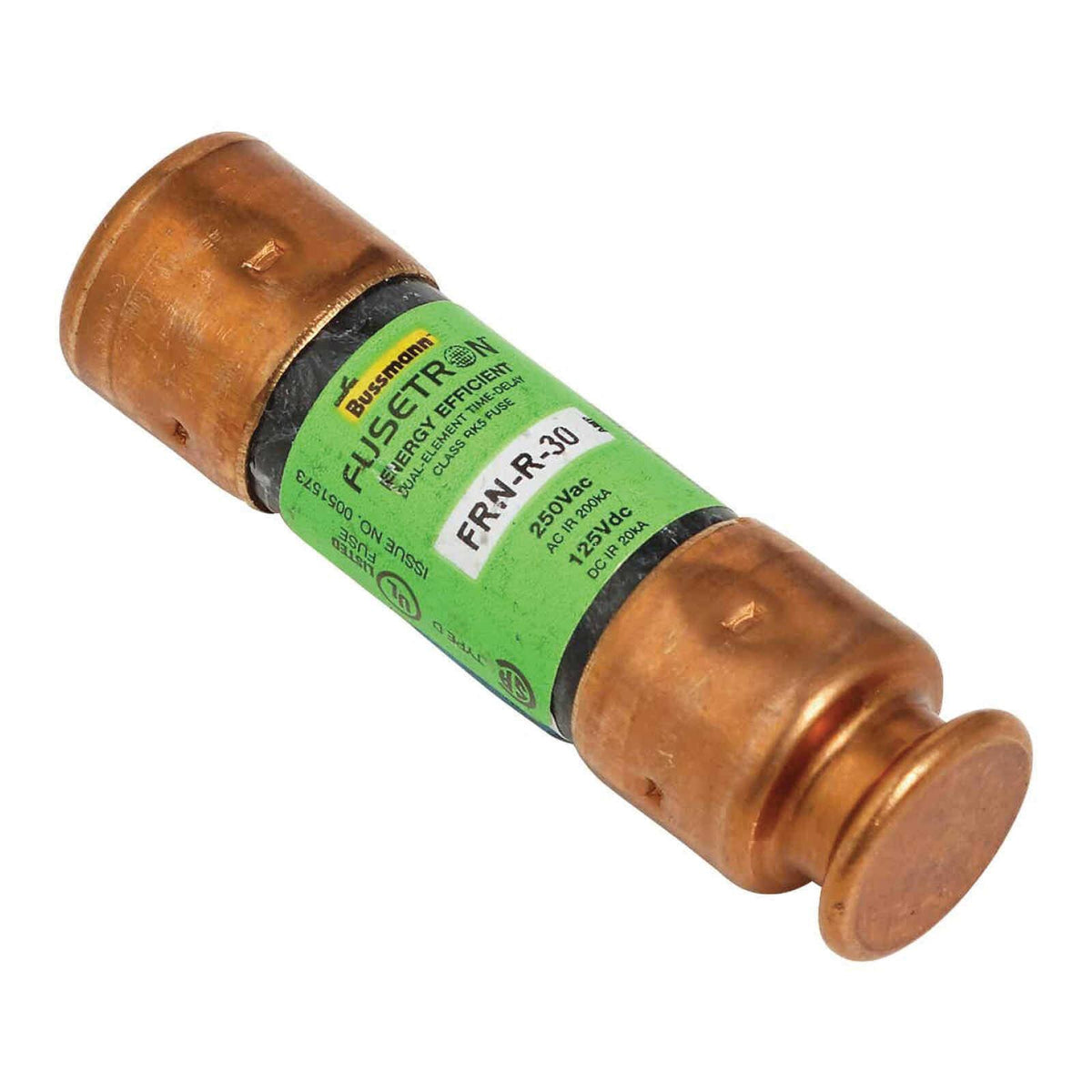

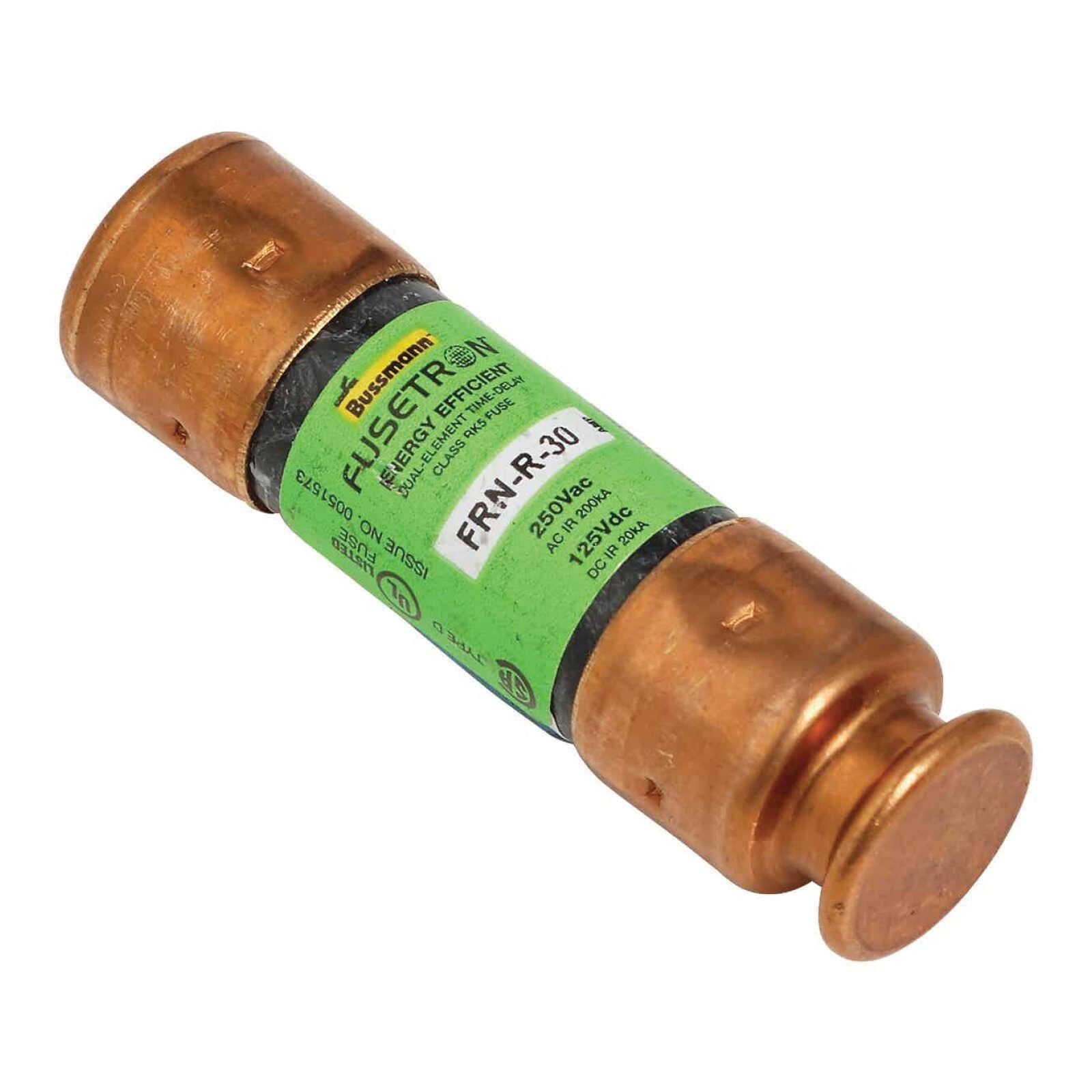

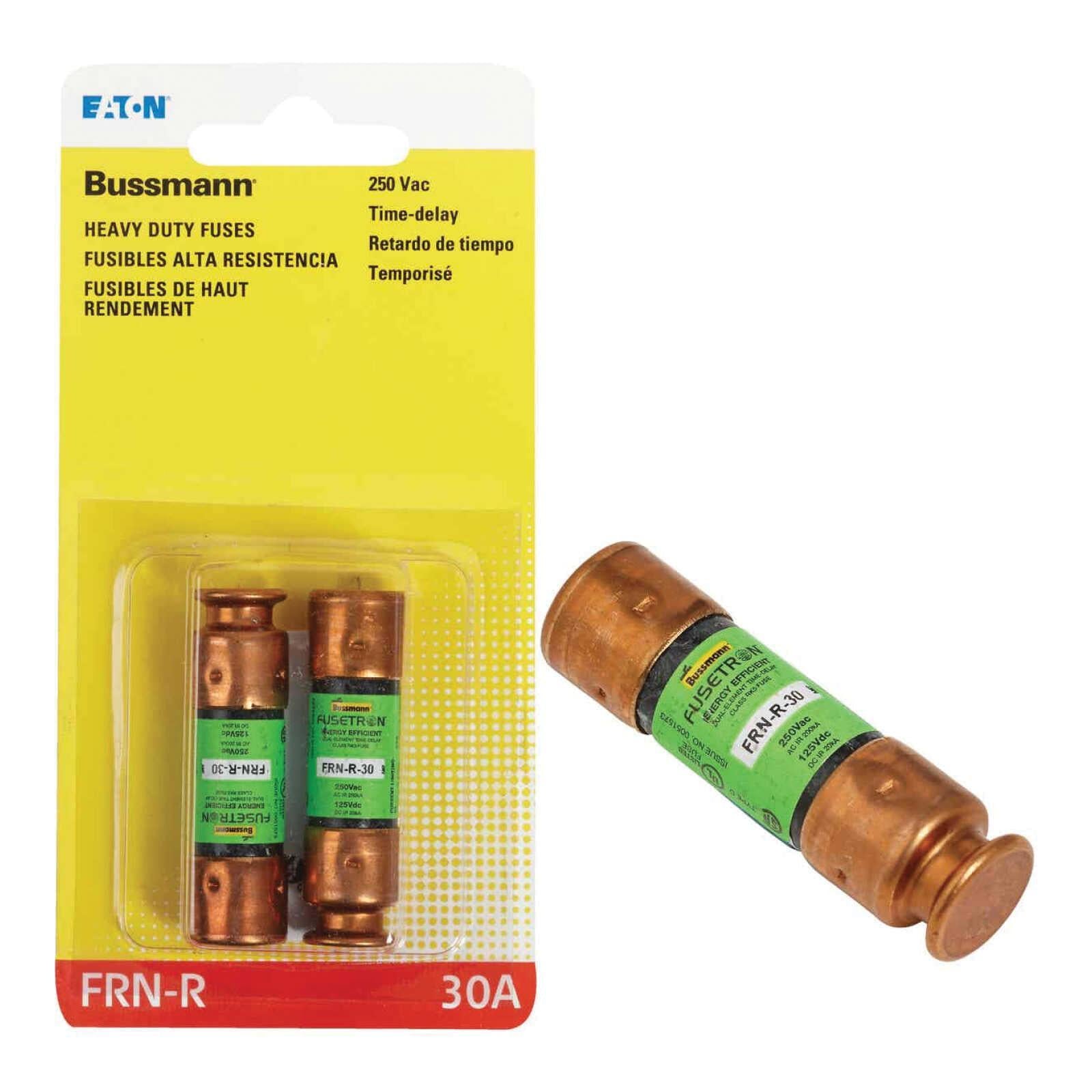

Bussmann Fusetron™ BP/FRN-R-30 Time Delay Fuse, 30 A, 250 VAC/125 VDC, 200 kA Interrupt, Class: RK5, Cartridge Body

Solo quedan 1
SKU: 3266434
(0)
$27.95
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Bussmann Fusetron™ Time Delay Fuse, Indicating/Non-Indicating: Non-Indicating, 250 VAC/125 VDC, 30 A, Class: RK5, 200 kA Interrupt, 8 s Response, Dual, Cartridge Body Type, Ferrule Terminal, Holder Mount, 2 in Length, 0.56 in Width, 0.56 in Height, 9/16 in Dia

Features:

  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from single phasing on three phase systems
  • Simplifies and improves blackout prevention (selective coordination)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level overcurrent of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 sec

Other Attributes:

  • SKU: 3266434
  • Indicating/Non-Indicating: Non-Indicating
  • Voltage Rating: 250 VAC/125 VDC
  • Amperage Rating: 30
  • Class: RK5
  • Interrupt Rating: 200
  • Response Time: 8
  • Element Type: Dual
  • Body Type: Cartridge
  • Terminal Type: Ferrule
  • Mounting Type: Holder
  • Length: 2
  • Width: 0.56
  • Height: 0.56
  • Diameter: 9/16

Documents:

Catalog
