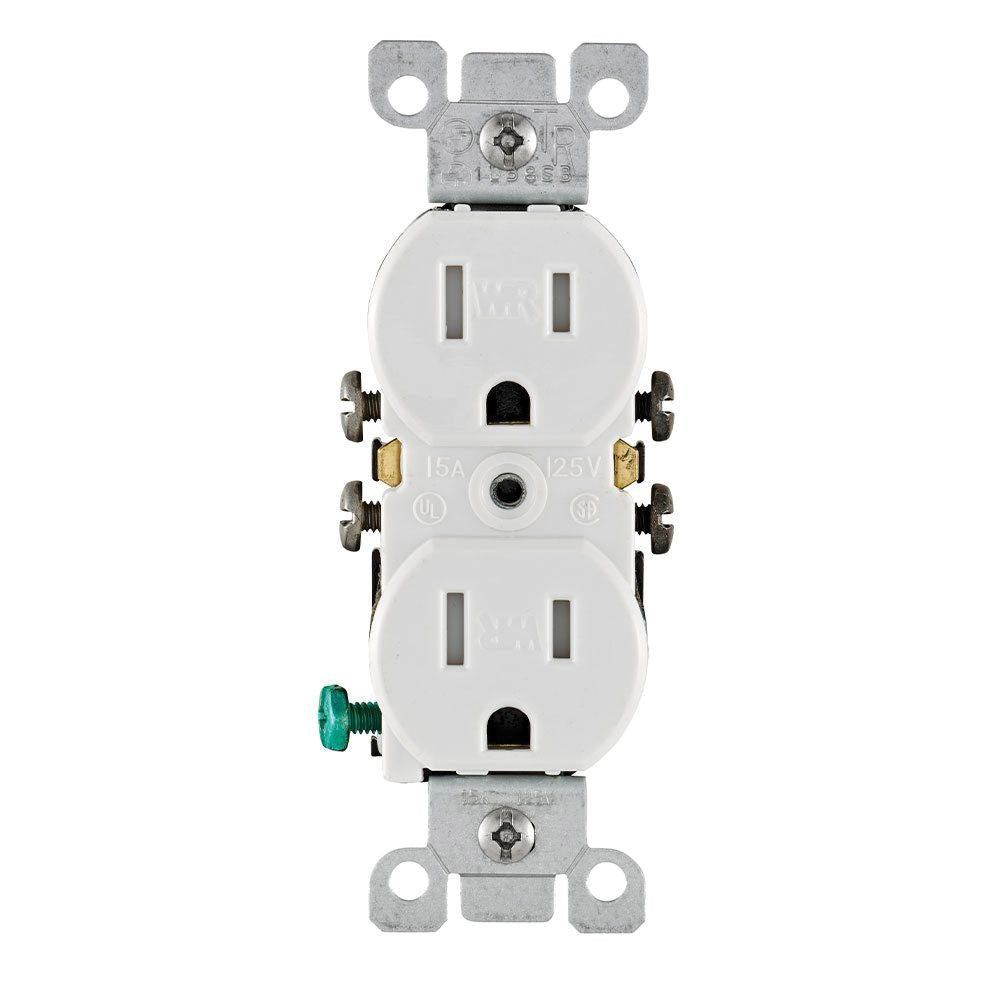

Leviton® W5320-T0W Blade Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R

En existencia
SKU: 3287406
(0)
$5.95
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Leviton® Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Residential Grade, NEMA Rating: NEMA 5-15R, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Copper, Solid Conductor, Screw Mounting, Thermoplastic Housing, Steel Strap, White, Additional Information: 14 to 18 in-lb Torque

Features:

  • Terminal screws accept up to #12 AWG copper or copper clad wire
  • Quickwire push-in terminals accept #14 AWG solid copper wire only
  • Shallow depth for maximum wiring room
  • Double-wipe power contacts for reliable conductivity and plug retention
  • Heavy gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs

Other Attributes:

  • SKU: 3287406
  • Voltage Rating: 125
  • Amperage Rating: 15
  • Number of Poles: 2
  • Number of Wires: 3
  • Grade: Residential
  • NEMA Rating: NEMA 5-15R
  • Grounding: Grounding
  • Terminal Type: Quick Wire Push-In Wired, Side Wired
  • Conductor Type: Copper, Solid
  • Mounting Type: Screw
  • Housing Material: Thermoplastic
  • Strap Material: Steel
  • Color: White
  • Additional Information: 14 to 18 in-lb Torque

Documents:

Instruction/Installation Manual

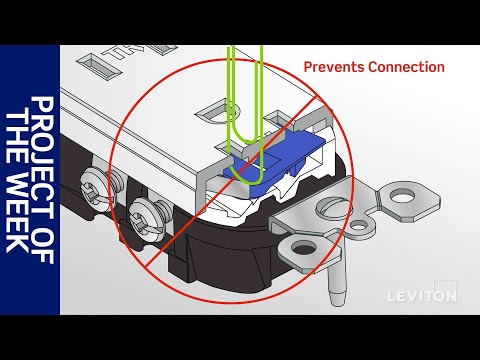

Video Link
Specification Sheet
Video Link 1
