Casa » Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head
Little GIANT®

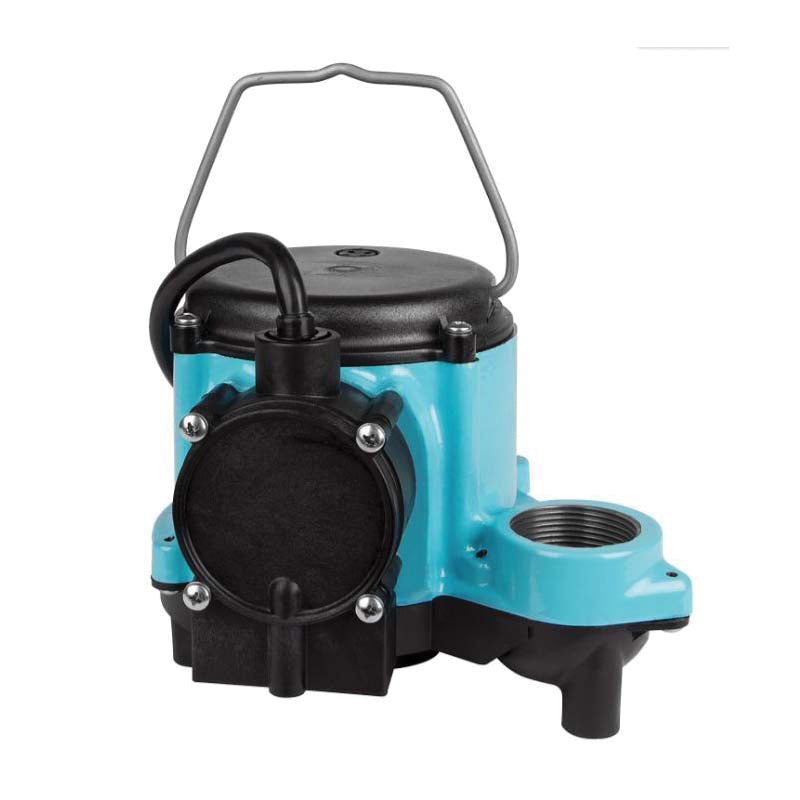

Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head

Solo quedan 2
SKU: 4098208
(0)
$199.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Little GIANT® Sump Pump, Model: 6-CIA, 115 V, 9 A Full Load, 50/60 Hz, 1/3 hp, 46 gpm at 5 ft, 29 gpm at 10 ft, 12.5 gpm at 15 ft Flow Rate, 1-1/2 in Discharge, 10 ft L Cord, Maximum Feet of Head: 18 ft, 7.8 psi, 120 deg F, Nylon Impeller, Epoxy-Coated Aluminum, 9-1/2 in L x 8-1/2 in W x 6 in H

Features:

  • Cast iron pump housing with protective epoxy coating for corrosion-resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 3/10 hp shaded pole motor
  • Stainless steel screws, bolts and handle to protect against corrosion
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Bearings - upper and lower sintered sleeve bearings for extended motor life
  • Thermal overload protection
  • Automatic operation with pressure switch activates pump when water level is between 7 and 10, pump shuts-off when water level falls to between 1 and 4 (pressure switch is non-adjustable)
  • Automatic operation with piggyback mechanical float switch activates pump when water level is between 9 and 10-1/2, pump shuts-off when water level falls to between 2 and 3 (pumping range is adjustable)
  • Integral diaphragm switch
  • Polypropylene volute, cold rolled steel motor shaft, nitrile with carbon shaft seal, stainless steel fasteners

Other Attributes:

  • SKU: 4098208
  • Series: 6 Series
  • Model: 6-CIA
  • Voltage Rating: 115
  • Amperage Rating: 9 A Full Load
  • Frequency Rating: 50/60
  • HP Rating: 1/3
  • Flow Rate: 46 gpm at 5 ft, 29 gpm at 10 ft, 12.5 gpm at 15 ft
  • Discharge Size: 1-1/2
  • Cord Size: 10 ft L
  • Maximum Feet of Head: 18
  • Pressure Rating: 7.8
  • Temperature Rating: 120
  • Impeller Material: Nylon
  • Material: Epoxy-Coated Aluminum
  • Dimensions: 9-1/2 in L x 8-1/2 in W x 6 in H

Documents:

Catalog
Specification Sheet
Instruction/Installation Manual
