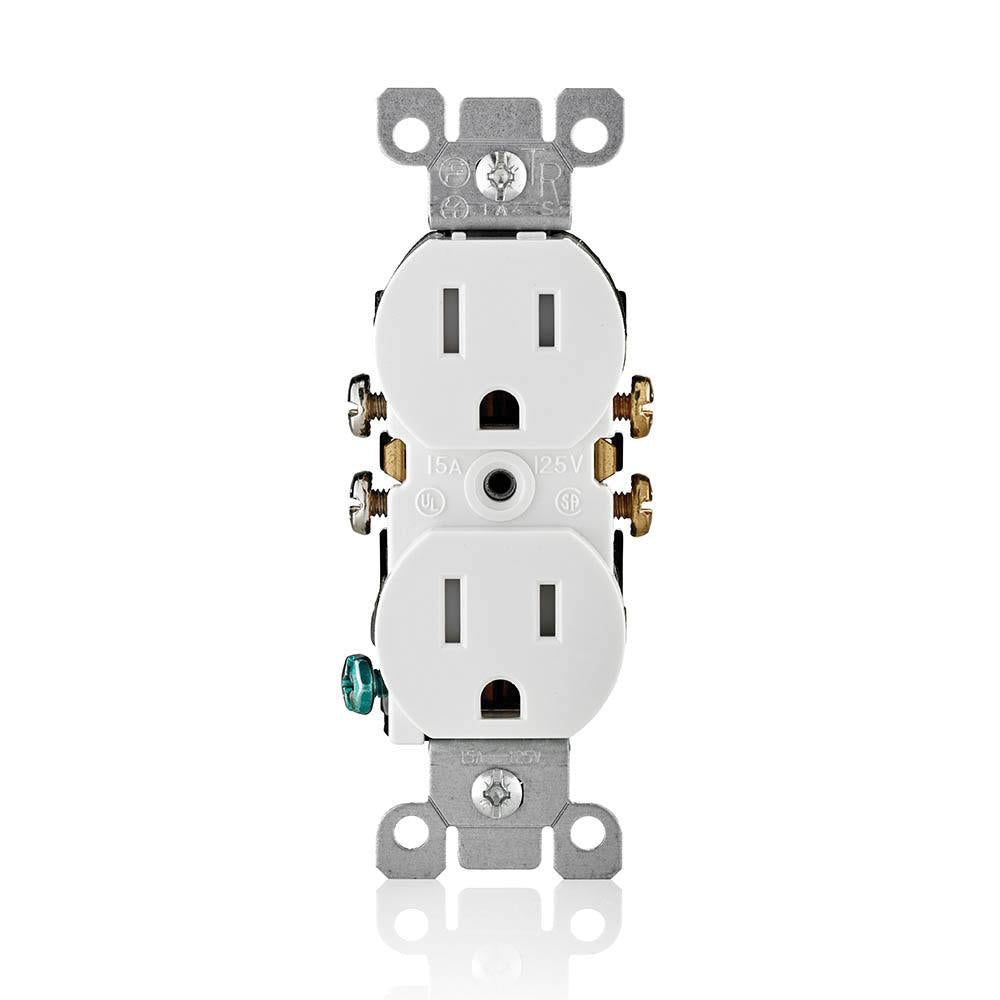

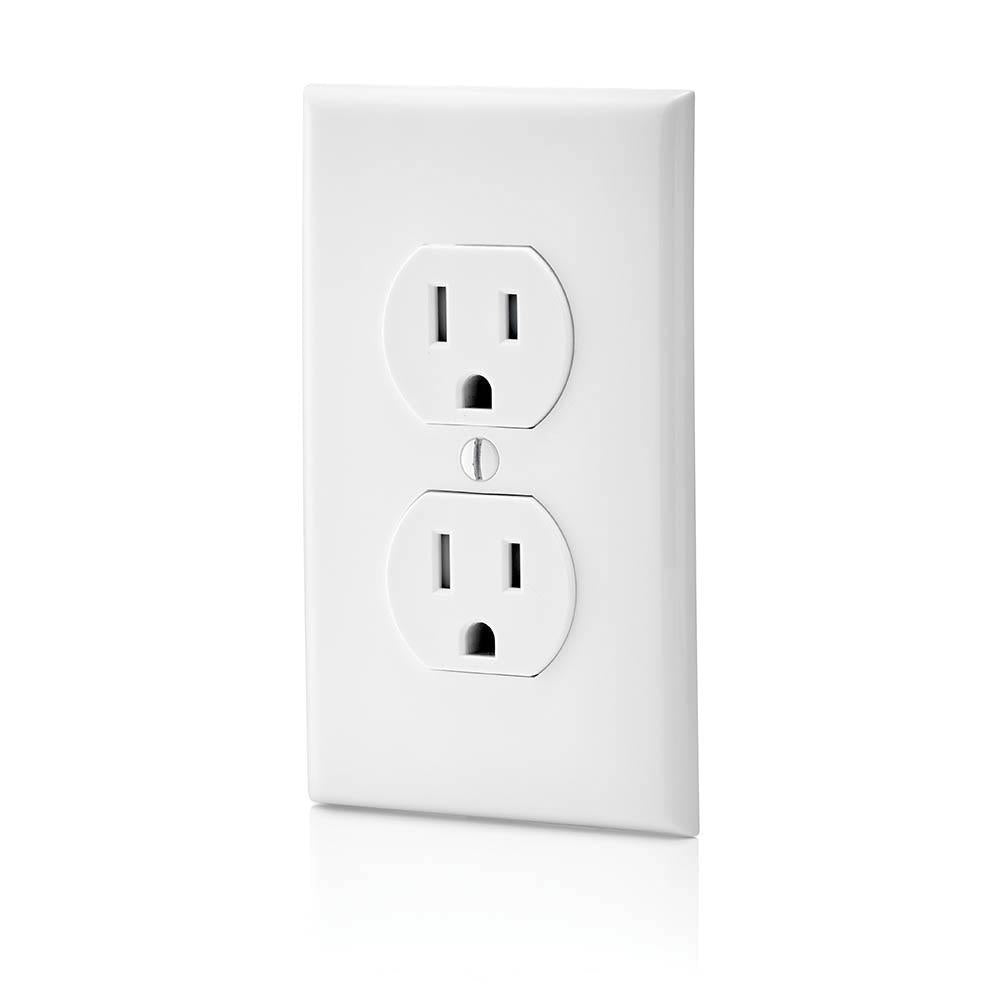

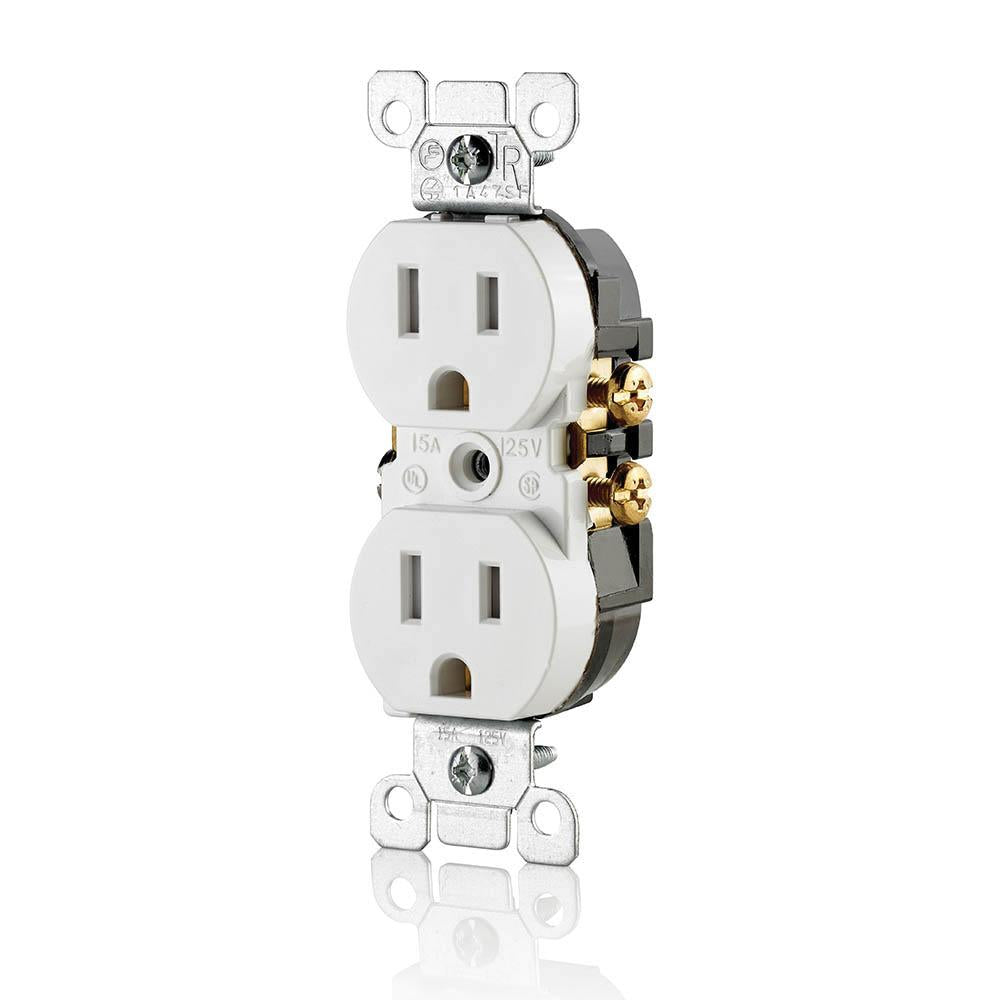

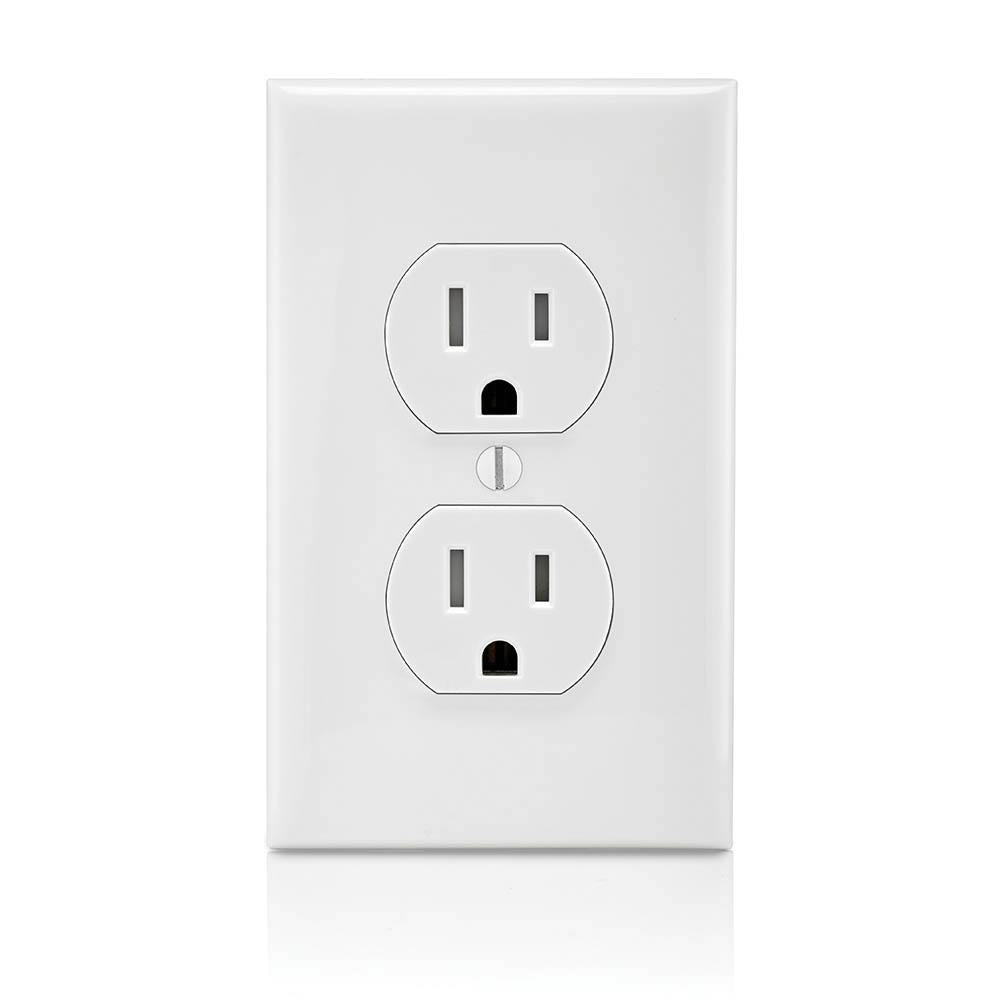

Leviton® T5320-W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R

Solo quedan 3
SKU: 3251873
(0)
$2.49
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Leviton® Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Residential Grade, NEMA Rating: NEMA 5-15R, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Copper, Solid Conductor, 14 AWG Conductor, Screw Mounting, Thermoplastic Nylon Housing, Steel Strap, White, 0.76 in Length, 1.32 in Width, 4.2 in Height

Features:

  • Safe tamper-resistant offers protection from electrical shocks
  • Durable - impact-resistant thermoplastic nylon construction
  • Easy quick wire push-in and side wiring for easy installation
  • Convenient - TR symbol on strap assures they meet the latest NEC requirements
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two or three-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
  • Shallow depth for maximum wiring room
  • Heavy-gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs

Other Attributes:

  • SKU: 3251873
  • Voltage Rating: 125
  • Amperage Rating: 15
  • Number of Poles: 2
  • Number of Wires: 3
  • Grade: Residential
  • NEMA Rating: NEMA 5-15R
  • Grounding: Grounding
  • Terminal Type: Quick Wire Push-In Wired, Side Wired
  • Conductor Type: Copper, Solid
  • Conductor Size: 14
  • Mounting Type: Screw
  • Housing Material: Thermoplastic Nylon
  • Strap Material: Steel
  • Color: White
  • Length: 0.76
  • Width: 1.32
  • Height: 4.2

Documents:

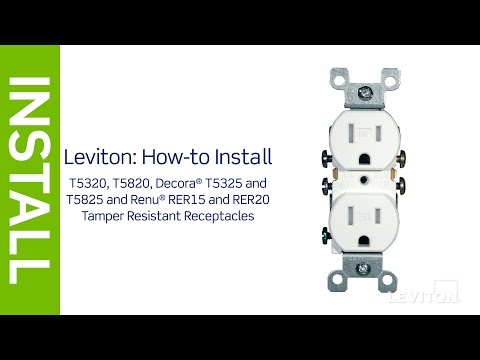

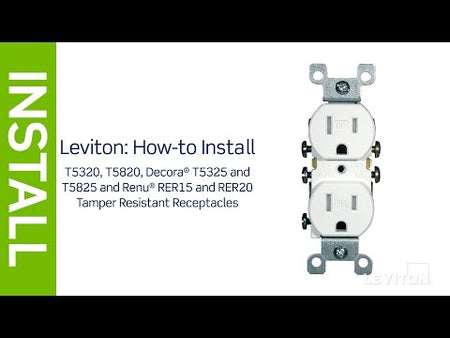

Video Link
Specification Sheet
Catalog
Technical Bulletin
Instruction/Installation Manual
