Casa » Simpson Strong-Tie® LUS28-2Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 10 in Joist, 7 in H, Steel
Simpson Strong-Tie®

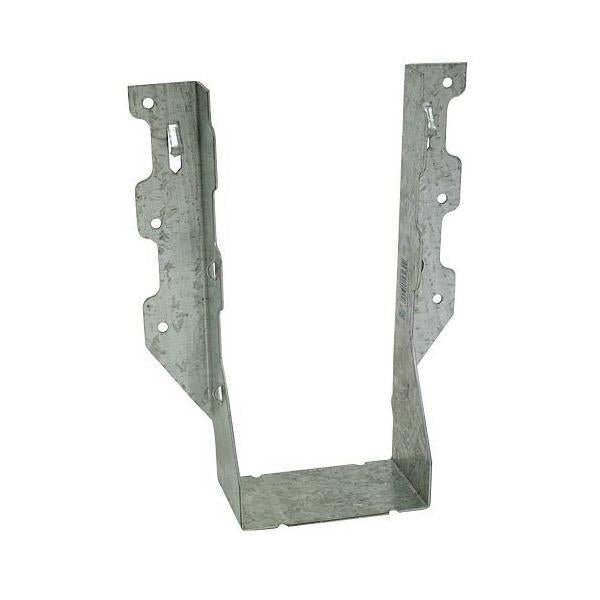

Simpson Strong-Tie® LUS28-2Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 10 in Joist, 7 in H, Steel

En existencia
SKU: LUS282Z
(0)
$4.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Simpson Strong-Tie® Light Capacity U-Shaped Hanger, 2 x 10 in Joist, 7 in Height, 3-1/8 in Width, Material Gauge: 18 ga, Nail, SD Connector Screw Fastener, (6) 0.162 in Dia x 3.5 in L Face Nails, (4) 0.162 in Dia x 3.5 Joist Nails, (4) #9 x 2.5 in Joist Screws, (6) #9 x 1.5 in Face Screws Fastener, 1060 lb 160% Uplift, 1315 lb 100% Floor, 1490 lb 115% Snow, 1610 lb 125% Roof, 2030 lb 160% Wind DF/SP, 910 lb 160% Uplift, 1130 lb 100% Floor, 1280 lb 115% Snow, 1385 lb 125% Roof, 1745 lb 160% Wind SPF/HF Nail, 1335 lb 160% Uplift, 1395 lb 100% Floor, 1570 lb 115% Snow, 1570 lb 125% Roof DF/SP, 1100 lb 160% Uplift, 960 lb 100% Floor, 1105 lb 115% Snow, 1200 lb 125% Roof SPF/HF Screw Load, Face Mounting, Steel, Finish: ZMAX®-Coated

Features:

  • Cannot be modified
  • Works for a wide range of applications
  • Features speed prongs used to temporarily position and secure the connector for easier and faster installation
  • LUS Series hangers are tested, load-rated and code compliant

Other Attributes:

  • SKU: LUS282Z
  • Joist Size: 2 x 10
  • Height: 7
  • Width: 3-1/8
  • Material Gauge: 18
  • Fastener Type: Nail, SD Connector Screw
  • Fastener Size: (6) 0.162 in Dia x 3.5 in L Face Nails, (4) 0.162 in Dia x 3.5 Joist Nails, (4) #9 x 2.5 in Joist Screws, (6) #9 x 1.5 in Face Screws
  • Load Capacity: 1060 lb 160% Uplift, 1315 lb 100% Floor, 1490 lb 115% Snow, 1610 lb 125% Roof, 2030 lb 160% Wind DF/SP, 910 lb 160% Uplift, 1130 lb 100% Floor, 1280 lb 115% Snow, 1385 lb 125% Roof, 1745 lb 160% Wind SPF/HF Nail, 1335 lb 160% Uplift, 1395 lb 100% Floor, 1570 lb 115% Snow, 1570 lb 125% Roof DF/SP, 1100 lb 160% Uplift, 960 lb 100% Floor, 1105 lb 115% Snow, 1200 lb 125% Roof SPF/HF Screw
  • Mounting Type: Face
  • Material: Steel
  • Finish: ZMAX®-Coated

Documents:

Catalog

Warning:

California Proposition 65 Warning.
