Home » Panasonic WhisperGreen® Select™ FV-0511VK2 Ventilation Fan, 120 V, 0.1 A, Aluminum/Magnesium/Zinc Housing
Panasonic

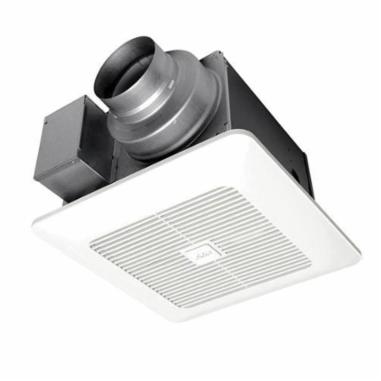

Panasonic WhisperGreen® Select™ FV-0511VK2 Ventilation Fan, 120 V, 0.1 A, Aluminum/Magnesium/Zinc Housing

Only 2 left
SKU: FV0511VK2
(0)
$229.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Panasonic Ventilation Fan, 120 V, 0.1 A, 60 Hz, 9.9 W, Ceiling Mounting, 13 in L x 13 in W Grille, 4 in Duct, ECM Motor, 50 cfm, 80 cfm, 110 cfm, 0.3 sones Noise Rating, 1266 rpm, 10-1/4 in Overall Length, 10-1/4 in Overall Width, 7-3/8 in Overall Height, Aluminum/Magnesium/Zinc Housing

Features:

  • Customizable, all-in-one whole-house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
  • Pick-A-Flow™ airflow selector features a built-in speed selector (50-80-110 cfm model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • Environmentally friendly 26 ga zinc aluminum magnesium housing design
  • Improved Flex-Z Fast™- single-hinge bracket with added flexibility, fast and easy
  • Elegant grille design complements the aesthetics of any room
  • Integrated 4 in dual duct adapter enhances installation options, fits 2 x 8 in construction
  • Built-in damper reduces back draft and helps with blower door testing
  • Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
  • Suitable for installation in ceilings insulated up to R60
  • Articulating and expandable installation bracket up to 24 in
  • Removable permanently lubricated plug-in motor
  • Motor equipped with thermal cut-off fuse
  • Enclosed brushless ECM smart motor technology rated for continuous operation
  • Attaches directly to housing with torsion springs
  • Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play™ module has not been selected

Other Attributes:

  • SKU: FV0511VK2
  • Voltage Rating: 120
  • Amperage Rating: 0.1
  • Frequency Rating: 60
  • Power Rating: 9.9
  • Mounting Type: Ceiling
  • Grille Size: 13 in L x 13 in W
  • Duct Size: 4
  • Motor Type: ECM
  • CFM Rating: 50 cfm, 80 cfm, 110 cfm
  • Noise Rating: 0.3
  • Speed Rating: 1266
  • Overall Length: 10-1/4
  • Overall Width: 10-1/4
  • Overall Height: 7-3/8
  • Housing Material: Aluminum/Magnesium/Zinc

Documents:

Specification Sheet
Service Manual
Instruction/Installation Manual
