Home » Panasonic WhisperValue® DC™ FV-0510VS1 Ventilation Fan, 120 V, 0.09 A at 50 cfm, 0.13 A at 80 cfm, 0.2 A at 100 cfm
Panasonic

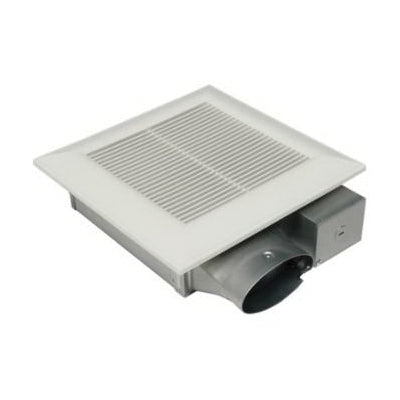

Panasonic WhisperValue® DC™ FV-0510VS1 Ventilation Fan, 120 V, 0.09 A at 50 cfm, 0.13 A at 80 cfm, 0.2 A at 100 cfm

Call For Availability
SKU: FV0510VS1
(0)
$143.95
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Panasonic Ventilation Fan, 120 V, 0.09 A at 50 cfm, 0.13 A at 80 cfm, 0.2 A at 100 cfm, 60 Hz, 4.4 W at 50 cfm, 7.2 W at 80 cfm, 11.1 W at 100 cfm, Steel, Polypropylene, Finish: Galvanized, Ceiling/Wall Mounting, 13 in L x 13 in W Grille, 50/80/100 cfm, 4 in Duct

Features:

  • DC motor - the best performing, most energy efficient motor
  • Pick-a-flow speed technology - one fan, you choose the cu-ft/min
  • 3-3/8 in housing depth is the slimmest design
  • Long life means reduced costs
  • Installation flexibility with a simpler bracket
  • Oval duct
  • AC motor
  • 10-1/2 in mount opening
  • Single family, manufactured housing, multi-family hospitality, assisted living, student housing renovation and remodelling construction
  • Noise - less than 0.3 sones at 50 cu-ft/min 0.1 in SP, 0.5 sones at 53 cu-ft/min 1/4 in SP, less than 0.4 sones at 80 cu-ft/min 0.1 in SP, 0.8 sones at 81 cu-ft/min 1/4 in SP, 0.9 sones at 100 cu-ft/min 0.1 in SP, 1.3 sones at 100 cu-ft/min 1/4 in SP
  • 12.8 cu-ft/min/W at 50 cu-ft/min, 11.4 cu-ft/min/W at 80 cu-ft/min, 9.2 cu-ft/min/W at 100 cu-ft/min energy efficiency
  • 26 ga galvanized steel

Other Attributes:

  • SKU: FV0510VS1
  • Voltage Rating: 120
  • Amperage Rating: 0.09 A at 50 cfm, 0.13 A at 80 cfm, 0.2 A at 100 cfm
  • Frequency Rating: 60
  • Power Rating: 4.4 W at 50 cfm, 7.2 W at 80 cfm, 11.1 W at 100 cfm
  • Material: Steel, Polypropylene
  • Finish: Galvanized
  • Mounting Type: Ceiling/Wall
  • Grille Size: 13 in L x 13 in W
  • CFM Rating: 50/80/100
  • Duct Size: 4

Documents:

Catalog
Specification Sheet
Instruction/Installation Manual
