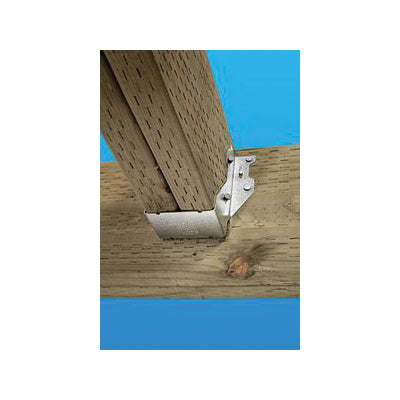

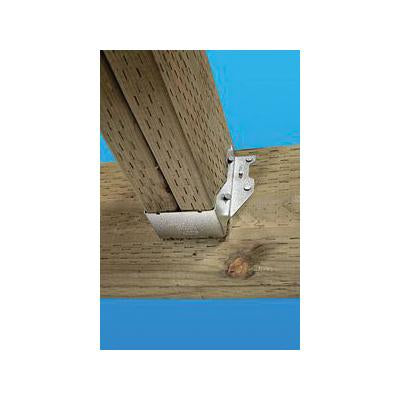

Simpson Strong-Tie® LUS26-2Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 8 in Joist, 4-7/8 in H, Steel

Name: Simpson Strong-Tie® LUS26-2Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 8 in Joist, 4-7/8 in H, Steel
Brand: Simpson Strong-Tie®
SKU: LUS262Z
Price: 3.99 USD
Availability: InStock

In stock

SKU: LUS262Z

(0)

Regular price $3.99

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Have A Product Question? Ask Us!

Free Same Day In-Store & Curbside Pickup.

Proudly 100% Employee-Owned & Operated In Marin County.

Simpson Strong-Tie® Light Capacity U-Shaped Hanger, 2 x 8 in Joist, 4-7/8 in Height, 3-1/8 in Width, Material Gauge: 18 ga, Nail, SD Connector Screw Fastener, (4) 0.162 in Dia x 3.5 in L Face Nails, (4) 0.162 in Dia x 3.5 in L Joist Nails, (4) #9 x 2-1/2 in Joist Screws, (4) #9 x 1-1/2 in Face Screws Fastener, 1060 lb 160% Uplift, 1030 lb 100% Floor, 1170 lb 115% Snow, 1265 lb 125% Roof, 1595 lb 160% Wind DF/SP, 910 lb 160% Uplift, 885 lb 100% Floor, 1005 lb 115% Snow, 1090 lb 125% Roof, 1370 lb 160% Wind SPF/HF, 1180 lb 160% Uplift, 1055 lb 100% Floor, 1210 lb 115% Snow, 1315 lb 125% Roof DF/SP, 1015 lb 160% Uplift, 735 lb 100% Floor, 845 lb 115% Snow, 920 lb 125% Roof SPF/HF Load, Face Mounting, Steel, Finish: Z-Max®

Features:

Cannot be modified
Works for a wide range of applications
Features speed prongs used to temporarily position and secure the connector for easier and faster installation
LUS Series hangers are tested, load-rated and code compliant

Other Attributes:

SKU: LUS262Z
Joist Size: 2 x 8
Height: 4-7/8
Width: 3-1/8
Material Gauge: 18
Fastener Type: Nail, SD Connector Screw
Fastener Size: (4) 0.162 in Dia x 3.5 in L Face Nails, (4) 0.162 in Dia x 3.5 in L Joist Nails, (4) #9 x 2-1/2 in Joist Screws, (4) #9 x 1-1/2 in Face Screws
Load Capacity: Nail - 1060 lb 160% Uplift, 1030 lb 100% Floor, 1170 lb 115% Snow, 1265 lb 125% Roof, 1595 lb 160% Wind DF/SP, 910 lb 160% Uplift, 885 lb 100% Floor, 1005 lb 115% Snow, 1090 lb 125% Roof, 1370 lb 160% Wind SPF/HF, Screw - 1180 lb 160% Uplift, 1055 lb 100% Floor, 1210 lb 115% Snow, 1315 lb 125% Roof DF/SP, 1015 lb 160% Uplift, 735 lb 100% Floor, 845 lb 115% Snow, 920 lb 125% Roof SPF/HF
Mounting Type: Face
Material: Steel
Finish: Z-Max®

Documents:

Catalog

Warning:

California Proposition 65 Warning.
