Home » Simpson Strong-Tie® LUS26Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 8 in Joist, 4-3/4 in H, Steel
Simpson Strong-Tie®

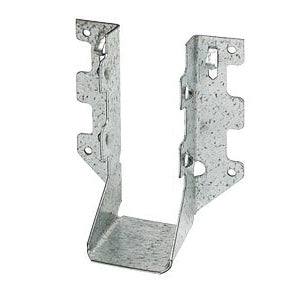

Simpson Strong-Tie® LUS26Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 8 in Joist, 4-3/4 in H, Steel

In stock
SKU: LUS26Z
(0)
$1.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Simpson Strong-Tie® Light Capacity U-Shaped Hanger, 2 x 8 in Joist, 4-3/4 in Height, 1-9/16 in Width, Material Gauge: 18 ga, Nail, SD Connector Screw Fastener, (4) 0.148 in Dia x 3 in L Face Nails, (4) 0.148 in Dia x 3 in L Joist Nails, (4) #9 x 2.5 in Joist Screws, (4) #9 x 1.5 in Face Screws Fastener, 1165 lb 160% Uplift, 865 to 935 lb 100% Floor, 990 to 1070 lb 115% Snow, 1070 to 1150 lb 125% Roof, 1355 to 1475 lb 160% Wind DF/SP, 865 lb 160% Uplift, 635 lb 100% Floor, 725 lb 115% Snow, 785 lb 125% Roof, 1000 lb 160% Wind SPF/HF Nail, 1180 lb 160% Uplift, 1055 lb 100% Floor, 1210 lb 115% Snow, 1315 lb 125% Roof DF/SP, 1015 lb 160% Uplift, 760 lb 100% Floor, 875 lb 115% Snow, 950 lb 125% Roof SPF/HF Screw Load, Face Mounting, Steel, Finish: ZMAX®-Coated

Features:

  • Cannot be modified
  • Works for a wide range of applications
  • Features speed prongs used to temporarily position and secure the connector for easier and faster installation
  • LUS Series hangers are tested, load-rated and code compliant

Other Attributes:

  • SKU: LUS26Z
  • Joist Size: 2 x 8
  • Height: 4-3/4
  • Width: 1-9/16
  • Material Gauge: 18
  • Fastener Type: Nail, SD Connector Screw
  • Fastener Size: (4) 0.148 in Dia x 3 in L Face Nails, (4) 0.148 in Dia x 3 in L Joist Nails, (4) #9 x 2.5 in Joist Screws, (4) #9 x 1.5 in Face Screws
  • Load Capacity: 1165 lb 160% Uplift, 865 to 935 lb 100% Floor, 990 to 1070 lb 115% Snow, 1070 to 1150 lb 125% Roof, 1355 to 1475 lb 160% Wind DF/SP, 865 lb 160% Uplift, 635 lb 100% Floor, 725 lb 115% Snow, 785 lb 125% Roof, 1000 lb 160% Wind SPF/HF Nail, 1180 lb 160% Uplift, 1055 lb 100% Floor, 1210 lb 115% Snow, 1315 lb 125% Roof DF/SP, 1015 lb 160% Uplift, 760 lb 100% Floor, 875 lb 115% Snow, 950 lb 125% Roof SPF/HF Screw
  • Mounting Type: Face
  • Material: Steel
  • Finish: ZMAX®-Coated

Documents:

Catalog

Warning:

California Proposition 65 Warning.
