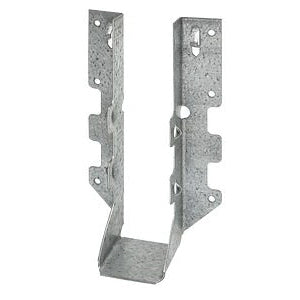

Simpson Strong-Tie® LUS28Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 10 in Joist, 6-5/8 in H, Steel

Name: Simpson Strong-Tie® LUS28Z Light Capacity U-Shaped Hanger With Double-Shear Nailing, 2 x 10 in Joist, 6-5/8 in H, Steel
Brand: Simpson Strong-Tie®
SKU: LUS28Z
Price: 2.33 USD
Availability: InStock

In stock

SKU: LUS28Z

(0)

Regular price $2.33

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Have A Product Question? Ask Us!

Free Same Day In-Store & Curbside Pickup.

Proudly 100% Employee-Owned & Operated In Marin County.

Simpson Strong-Tie® Light Capacity U-Shaped Hanger, 2 x 10 in Joist, 6-5/8 in Height, 1-9/16 in Width, Material Gauge: 18 ga, Nail, SD Connector Screw Fastener, (6) 0.148 in Dia x 3 in L Face Nails, (4) 0.148 in Dia x 3 in L Joist Nails, (4) #9 x 2.5 in Joist Screws, (6) #9 x 1-1/2 in Face Screws Fastener, 1165 lb 160% Uplift, 1100 to 1195 lb 100% Floor, 1260 to 1360 lb 115% Snow, 1350 to 1465 lb 125% Roof, 1725 to 1730 lb 160% Wind DF/SP, 865 lb 160% Uplift, 810 lb 100% Floor, 925 lb 115% Snow, 1000 lb 125% Roof, 1270 lb 160% Wind SPF/HF Nail, 1335 lb 160% Uplift, 1395 lb 100% Floor, 1570 lb 115% Snow, 1570 lb 125% Roof DF/SP, 1130 lb 160% Uplift, 985 lb 100% Floor, 1135 lb 115% Snow, 1230 lb 125% Roof SPF/HF Screw Load, Face Mounting, Steel, Finish: ZMAX®-Coated

Features:

Cannot be modified
Works for a wide range of applications
Features speed prongs used to temporarily position and secure the connector for easier and faster installation
LUS Series hangers are tested, load-rated and code compliant

Other Attributes:

SKU: LUS28Z
Joist Size: 2 x 10
Height: 6-5/8
Width: 1-9/16
Material Gauge: 18
Fastener Type: Nail, SD Connector Screw
Fastener Size: (6) 0.148 in Dia x 3 in L Face Nails, (4) 0.148 in Dia x 3 in L Joist Nails, (4) #9 x 2.5 in Joist Screws, (6) #9 x 1-1/2 in Face Screws
Load Capacity: 1165 lb 160% Uplift, 1100 to 1195 lb 100% Floor, 1260 to 1360 lb 115% Snow, 1350 to 1465 lb 125% Roof, 1725 to 1730 lb 160% Wind DF/SP, 865 lb 160% Uplift, 810 lb 100% Floor, 925 lb 115% Snow, 1000 lb 125% Roof, 1270 lb 160% Wind SPF/HF Nail, 1335 lb 160% Uplift, 1395 lb 100% Floor, 1570 lb 115% Snow, 1570 lb 125% Roof DF/SP, 1130 lb 160% Uplift, 985 lb 100% Floor, 1135 lb 115% Snow, 1230 lb 125% Roof SPF/HF Screw
Mounting Type: Face
Material: Steel
Finish: ZMAX®-Coated

Documents:

Catalog
