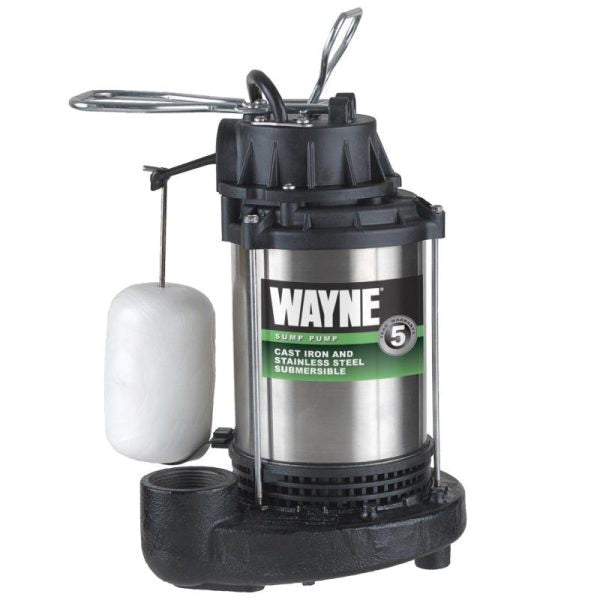

WAYNE® CDU1000 Submersible Sump Pump, 120 V, 15 A, 1 hp, 102 gpm, Cast Iron/Stainless Steel

Only 2 left
SKU: 4492591
(0)
$279.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
WAYNE® Submersible Sump Pump, 120 V, 15 A, 60 Hz, 1 hp, 102 gpm Flow Rate, 1 ph Phase, 1-1/2 in Discharge, 8 ft Cord Length, Ball Bearing, Glass Reinforced Polycarbonate Impeller, Cast Iron/Stainless Steel, 10-1/2 in L x 9 in W x 11 in H

Features:

  • Assembled in the US with foreign and domestic parts
  • WAYNE Pumps' energy efficient motors, and engineered design provide the ultra-quiet experience you won't believe. The Hardest Working Pumps, You'll Never Hear™
  • Corrosion Resistant Stainless Steel and Rugged Cast Iron Construction, for long life in tough sump sump applications
  • High performance; max. flow rate is 6100 Gallons Per Hour; 5100 GPH at 10 ft. of discharge lift
  • Integrated Vertical Float Switch with Solid, Leak Free Polypropylene Float for automatic operation; 9 in. ON level and 4 in. OFF level
  • No need for weep holes; Unique Top Suction Design reduces clogging and prevents air lock condition
  • Engineered with Upper and lower ball bearings, in sealed oil bath, for virtually silent operation
  • Designed with Premium John Crane Carbon/Ceramic Shaft Seals for quality that lasts
  • Cast Iron Seal Plate Prevents Leaks and Galvanic Corrosion
  • 1-1/2 In. NPT Discharge for compliance with building codes
  • 120 V, PSC, Oil-Filled 1 HP Motor
  • Float Guard, Protects Switch from Hang-Ups from Debris and side of pit
  • Abrasion Resistant Glass Reinforced Polycarbonate Impeller for Reliability
  • 8 ft Water Resisitant Power Cord provides easy access to nearby GFCI protected outlet
  • For easy installation, use in 11 in. diameter or larger sump basins
  • CSA agency approved
  • 5 Year Limited Warranty

Other Attributes:

  • SKU: 4492591
  • Voltage Rating: 120
  • Amperage Rating: 15
  • Frequency Rating: 60
  • HP Rating: 1
  • Flow Rate: 102
  • Phase: 1
  • Discharge Size: 1-1/2
  • Cord Length: 8
  • Bearing Type: Ball
  • Impeller Material: Glass Reinforced Polycarbonate
  • Material: Cast Iron/Stainless Steel
  • Dimensions: 10-1/2 in L x 9 in W x 11 in H

Documents:

Instruction/Installation Manual
